- Place of Origin: China
- Brand Name: hexin
- Model Number: QC12Y

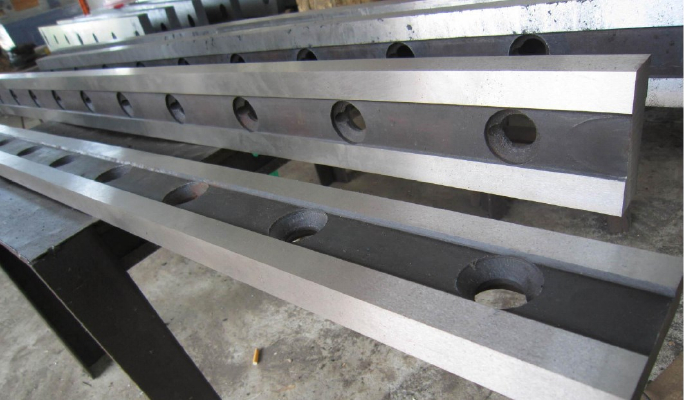

Standard bending machine mould is the forming of sheet metal bending machine processing mould, the main requirement is high strength, high toughness and good wear resistance. The workpiece under the action of the mould, folding into 90 degrees or other point of view, according to the different nature of plate and the stress state, adjust the pressure of the bending machine and mold. The shape of bending machine mould flanging process method for processing a variety of shapes, so it is widely used in sheet metal production.
Bending the product geometry, can choose standard knife, knife, curved knife, etc. To die geometry and geometry, meet the mold stress points and way, the combination of the mould and the products do not collide with each other, is the strength of the mould should be, insufficient supplement. Bending machine tool according to the product's perspective, the flanging size design force and the cavity of the camber, bending machine mould of V type notch is generally designed according to the thickness of the plate opening size, CAD design must be according to the requirement of the folding products, combined with your current machine, stroke, pressure, table size, etc.
Bending machine mould materials are: T8, T10A, 42 crmo, Cr12MoV1.
Quenching hardness HRC: 48 ° - 55 °.
Standard length: 1000 mm, 835 mm, 800 mm, 500 mm, standard, non-standard sizes can be customized.
- Place of Origin: China
- Brand Name: hexin
- Model Number: QC12Y
model | thickness(mm) | wide(mm) | shear angle | Strength of materials(N/mm) | adjusting range(mm) | Travel times (time/min) | Main motor power(Kw) | weight | Overall dimensions |
QC12Y-4×2500 | 4 | 2500 | 1°30′ | ≤450 | 20-500 | 16 | 5.5 | 5000 | 3040×1610×1620 |
QC12Y-4×320 | 4 | 3200 | 1°30′ | ≤450 | 20-500 | 13 | 5.5 | 6000 | 3840×1610×1620 |
QC12Y-6×2500 | 6 | 2500 | 1°30′ | ≤450 | 20-500 | 15 | 7.5 | 6000 | 3040×1610×1620 |
QC12Y-6×3200 | 6 | 3200 | 1°30′ | ≤450 | 20-500 | 12 | 7.5 | 7000 | 3840×1610×1620 |
QC12Y-6×4000 | 6 | 4000 | 1°30′ | ≤450 | 20-600 | 9 | 7.5 | 8300 | 4620×1750×1700 |
QC12Y-6×6000 | 6 | 6000 | 1°30′ | ≤450 | 20-800 | 5 | 18.5 | 18500 | 6480×2100×2300 |
QC12Y-8×2500 | 8 | 2500 | 1°30′ | ≤450 | 20-500 | 14 | 7.5 | 7000 | 3040×1700×1700 |
QC12Y-8×3200 | 8 | 3200 | 1°30′ | ≤450 | 20-500 | 8 | 7.5 | 7500 | 3860×1700×1700 |
QC12Y-8×4000 | 8 | 4000 | 1°30′ | ≤450 | 20-600 | 8 | 11 | 8500 | 4640×1700×1700 |
QC12Y-8×6000 | 8 | 4000 | 1°30′ | ≤450 | 20-800 | 8 | 18.5 | 20000 | 6480×2100×2350 |
QC12Y-10×2500 | 10 | 2500 | 1°30′ | ≤450 | 20-500 | 10 | 7.5 | 7300 | 3040×1700×1700 |
QC12Y-10×3200 | 10 | 3200 | 2° | ≤450 | 20-500 | 10 | 7.5 | 8000 | 3860×1700×1700 |
QC12Y-10×4000 | 10 | 4000 | 2° | ≤450 | 20-600 | 10 | 18.5 | 12050 | 4650×2100×2000 |
QC12Y-10×6000 | 10 | 6000 | 1°30′ | ≤450 | 20-600 | 10 | 18.5 | 24000 | 6500×2100×2300 |
QC12Y-12×2500 | 12 | 2500 | 1°40′ | ≤450 | 20-500 | 12 | 18.5 | 11000 | 3140×2150×2000 |
QC12Y-12×3200 | 12 | 3200 | 1°40′ | ≤450 | 20-500 | 10 | 18.5 | 12500 | 3880×2150×2000 |
QC12Y-12×4000 | 12 | 4000 | 1°40′ | ≤450 | 20-600 | 10 | 18.5 | 14500 | 4680×2150×2000 |
QC12Y-16×2500 | 16 | 2500 | 2° | ≤450 | 20-500 | 10 | 18.5 | 12000 | 3140×2150×2000 |
QC12Y-16×3200 | 16 | 3200 | 2° | ≤450 | 20-600 | 10 | 18.5 | 13500 | 3880×2150×2000 |
QC12Y-16×4000 | 16 | 4000 | 2°30′ | ≤450 | 20-800 | 10 | 18.5 | 16000 | 4650×2150×2200 |
QC12Y-20×2500 | 20 | 2500 | 2°30′ | ≤450 | 20-500 | 8 | 37 | 18000 | 3440×2300×2500 |
QC12Y-20×3200 | 20 | 3200 | 2°30′ | ≤450 | 20-1000 | 8 | 37 | 23000 | 4150×2350×2700 |
QC12Y-25×2500 | 25 | 2500 | 3° | ≤450 | 20-1000 | 8 | 45 | 25000 | 3200×2700×2900 |
QC12Y-25×3200 | 25 | 3200 | 3° | ≤450 | 20-1000 | 5 | 37 | 26000 | 4200×2500×2600 |
QC12Y-30×2500 | 30 | 2500 | 3° | ≤450 | 20-1000 | 4 | 40 | 28000 | 3300×2900×3000 |
QC12Y-30×3200 | 30 | 3200 | 3°30′ | ≤450 | 20-1000 | 4 | 40 | 34000 | 4200×2500×2600 |
QC12Y-40×2500 | 40 | 2500 | 4° | ≤450 | 20-1000 | 3 | 75 | 46000 | 3200×3300×3200 |
QC12Y-40×3200 | 40 | 3200 | 4° | ≤450 | 20-1000 | 3 | 90 | 58000 | 4300×3300×3000 |
