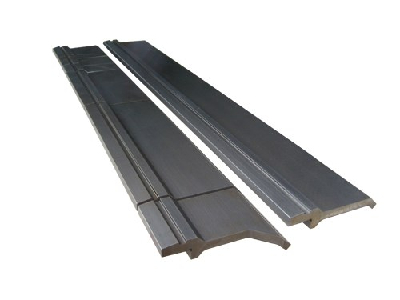

Standard bending machine mold

Standard bending machine mold

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: lianyungang
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2014-12-02
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  hexin
  • Model Number:  QC12Y

Mechanical shear blade performance and features:



1, the machine for all steel welding, hydraulic transmission, vibration to eliminate stress, high strength, good rigidity machine. Hydraulic pendulum shearing machine is through the adoption of the main oil cylinder fixed on the wall () do downward shearing movement, the nitrogen cylinder return, thus simplify the hydraulic system, running more stable. Pendulum shearing machine of tool carrier on around a fixed axis for circular arc in the process of shear oscillation, leverage,



Fulcrum force is small, can improve the shear blade life, machine life, the machine has compact structure, and can adjust the tool post stroke volume on the promise, greatly improve the work efficiency.



2, numerical control system function (Netherlands Delem) : all Chinese display, easy to operation. After keep-off device for the motor block adjustment with unidirectional and bidirectional positioning function, can effectively remove the screw clearance, with functions of concession material, avoid the interference keep-off device and the workpiece, reduce wear and improve the positioning accuracy, with functions of automatic or manual search reference point. With power position memory function, the protection of parameters, the location and procedures on the spot. Have multi-step processing programming function, can realize the dynamic running of multi-step, complete step multiplex parts one-time processing, improve production efficiency.



3, the guard interlock life safety device and electric box.



4, the use of advanced integrated hydraulic system, good reliability.



  • Place of Origin:  China
  • Brand Name:  hexin
  • Model Number:  QC12Y

type

Cutting board size

(mm) x width (thick)

shear angle(°)

Air travel times
(time/min)

 adjusting range(mm)

main motor(kw)

QC12Y 4×3200

4×3200

1°30′

18

20~600

5.5

QC12Y 6×2500

6×2500

1°30′信

18

20~600

7.5

QC12Y 6×3200

6×3200

1°30′

14

20~600

7.5

QC12Y 6×4000

6×4000

1°30′

14

20~600

7.5

QC12Y 6×5000

6×5000

1°30′

10

20~800

11

QC12Y 6×6000

6×6000

1°30′

8

20~800

11

QC12Y 8×2500

8×2500

1°30′

16

20~600

11

QC12Y 8×3200

8×3200

1°30′

12

20~600

11

QC12Y 8×4000

8×4000

1°30′

10

20~600

11

QC12Y 8×5000

8×5000

1°30′

8

20~600

15

QC12Y 8×6000

8×6000

1°30′

7

20~600

15

QC12Y 10×2500

10×2500

1°30′

14

20~800

15

QC12Y 10×3200

10×3200

1°30′

12

20~800

15

QC12Y 10×4000

10×4000

1°30′

12

20~800

15

QC12Y 12×2500

12×2500

1°30′

16

20~800

18.5

QC12Y 12×3200

12×3200

1°30′

14

20~800

18.5

QC12Y 12×4000

12×4000

1°30′

14

20~800

18.5

QC12Y 12×5000

12×5000

1°30′

7

20~800

22

QC12Y 12×6000

12×6000

1°30′

6

20~800

22

QC12Y 12×8000

12×8000

1°30′

5

20~800

22

QC12Y 16×2500

16×2500

14

20~800

22

QC12Y 16×3200

16×3200

12

20~800

22

QC12Y 16×4000

16×4000

8

20~800

22

QC12Y 20×2500

20×2500

2°30′

5

20~800

30

QC12Y 20×3200

20×3200

2°30′

5

20~800

30

QC12Y 20×4000

20×4000

2°30′

5

20~800

30

QC12Y 25×2500

25×2500

2°30′

6

20~800

37

QC12Y 25×3200

25×3200

2°30′

6

20~800

37

QC12Y 25×4000

25×4000

2°30′

6

20~800

37

QC12Y 32×2500

32×2500

5

20~800

37

QC12Y 32×3200

32×3200

5

20~800

37

QC12Y 40×2500

40×2500

5

20~800

45

QC12Y 40×3200

40×3200

5

20~800

45

QC12Y 50×3000

50×3000

5

20~800

90×3

QC12Y 50×6000

50×6000

5

20~800

90×5

QC12Y 60×3500

60×3500

3°30′

5

20~800

90×
